Semi-AutoFlat Bed Knitting Machine

FOB Reference Price:Get Latest Price
2 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Product Type:
Collar
Type:
Circular
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
SN
Model Number:
SN-03
Knitting Style:
Flat
Knitting Method:
Single
Computerized:
Yes
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden box
Port
Ningbo
Lead Time :
7days
Detailed Product Description





Semi-Automatic Flat Knitting Machine for Sweaters. 9G,12G, 14G is Common. With from 40 Inch to 120 Inch is common.



Semi-Automatic Flat Knitting Machine for Sweaters



Model Number: SN-SEMI



Specifications



1) Knitting function knit, miss, tuck, jacquard,hidden or apparent shapping and other regular patterns

2) Knitting system Single carriage with control box ( can be programmed).

3) Each hill board has one knitting cam and one tucking cam only

4) Knitting speed  Max 1.2m/sec. Knitting speed varies according to gauge and knitting condition Stitch density. If working 24 hours one day, the max. weight of the yarn can reach 40KG.

5) Controlled by stepping motor with scope 0-99 Racking

6) Stppeing motor-driven racking mechanism.Max 20mm

7) Racking  Fabric takedown by roller

8) Main roller controlled by torque motor



9) Machine can make 1*1,2*1,3*4,4*3 products



10) Needles no. 78.66



The following photos are for the details of our Semi-Automatic Flat Knitting Machine



1) It is the sensor of the machine.

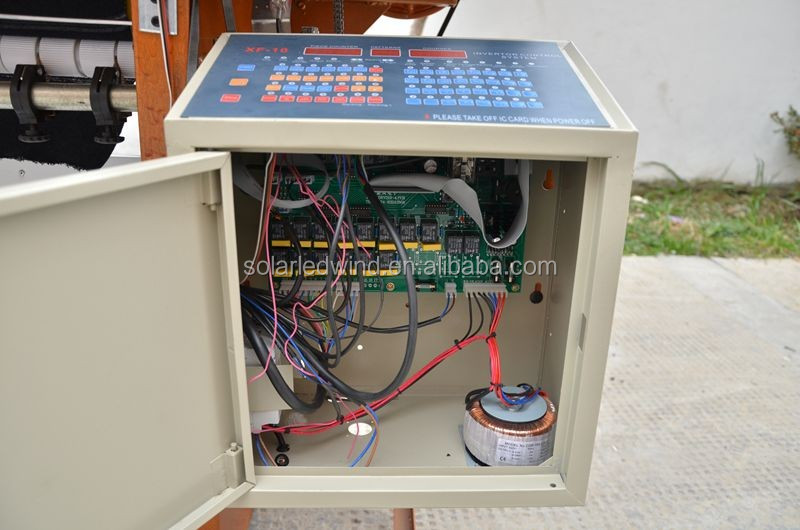

2) The following photo is for the control box of the machine, which can be programmed.










3) The following photo is for the tools we prepared together with the machine.

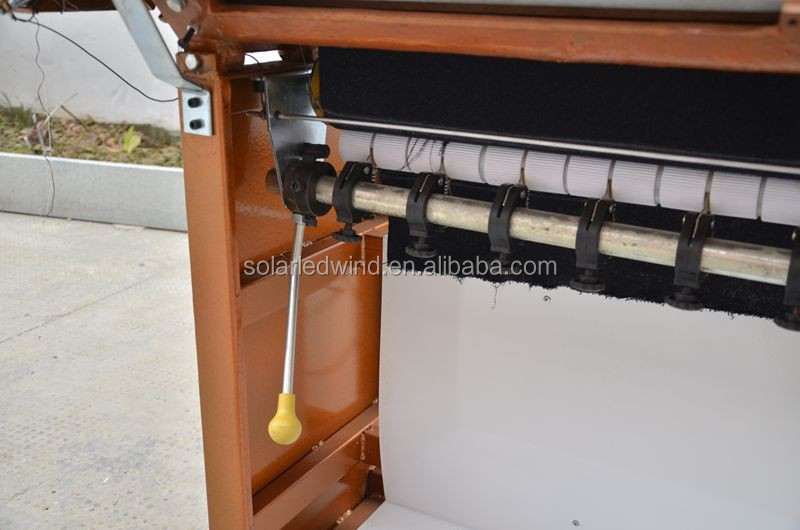

4) The following photo is for the roller and the converter on the machine. The later one can adjust the knitting speed of the machine.

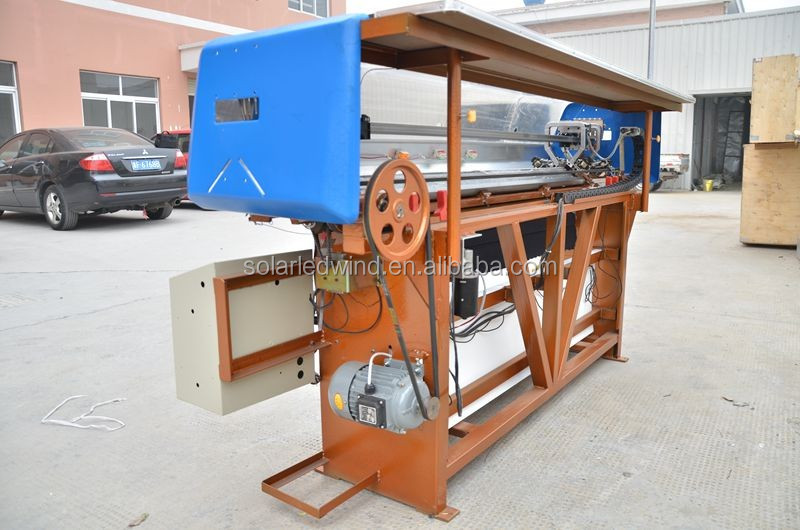

5) The following photo is for the motor of the machine.








6) The following photos is for the package of the machine for exportation.










Semi-Automatic Flat Knitting Machine for Sweaters Semi-Automatic Flat Knitting Machine for Sweaters
