Full Auto Plain Socks Knit Machine

FOB Reference Price:Get Latest Price
1 Set/Sets (Min. Order)
Supply Ability:
100 Set/Sets per Month
Report Suspicious Activity
Quick Details
Plain Knitting Machine
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Model Number:
Packaging & Delivery
Packaging Details
wooden box
Delivery Time


Fully Computerized, Single Cylinder, One Feeder

Detailed Product Description

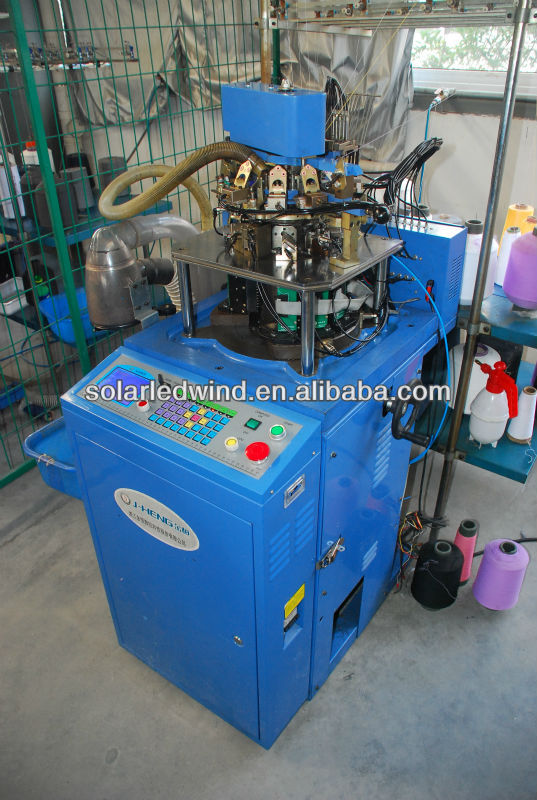

Legging Machine. System: MINGDE. Fully Computerized, Single Cylinder, One Feeder.


Legging Machine


Model: 602


Key Words: Fully Computerized, Single Cylinder, One Feeder


Control Panel

-Chinese and English display;

-Large LCD display shows both character and figure;

-Pattern and program data can be input/output by disk.


Numerical control computer system is innovated by Jinheng through  many years research and development. The function is more powerful than the imported counterparts, more competitive in reliability and price.


Technical Specifications


Cylinder Diameter: 3-1/2''

Number of Needles: 72~200N

Rotation: 330~380 (Max.400)

Servo Motor: 0.8KW

Fan Motor: 0.75KW

Control Box: 0.8KW

Net Weight: 380KG

Gross Weight: 430KG

W*L*H: 1900*960*900mm


Technical Features

1) Fully electronic control weaving system, non-roller;

2) Driven by Servo Motor;

3) Adjust yarn tension and weaving density by stepping motor;

4) Sensing device is able to auto-protect, minimize the damage when threre is breakdown;

5) Keeping high speed running to improve the inner cam;

6) Yarn and cam are electronic controlled;

7) Auto oil feeder system;

8) Available with 1 main color and 5 pattern colors;

9) Available with 2 patterns and 2 programs. Max. range of pattern is 1200 rows;

10) Automatic zero set when power on;


11) Equipped with the UPS system can memory the current program and knitting action if transience power off. When the power restored, it can continue knitting to avoid any loss or wastage;


12) Password-protection for parameter setup, to avoid the inadvertent change or unallowed modification, improve the reliability and safety;


13) Available in 220/415V and 50/60Hz.
