single carriage collar machine

FOB Reference Price:Get Latest Price
1 Set/Sets (Min. Order)
Supply Ability:
100 Set/Sets per Month
Port:
NINGBO
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Product Type:
Sweater
Type:
Jacquard
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
SN
Model Number:
511-A
Knitting Style:
Flat
Knitting Method:
Double
Computerized:
Yes
Packaging & Delivery
Delivery Time
16DAYS

Specifications

single carriage collar machine

Detailed Product Description





the machine can make the collar , cuff, rib and so on, machine can be two color



achine introduce :



Model  511-A



Knitting width 40"---120"



Gauge 1.5G----16G



Knitting function knit, miss, tuck, jacquard,hidden or apparent shapping and other regular patterns



Knitting system Single carriage with single system.



Each hill board has one knitting cam and one tucking cam only  Knitting speed  Max 1.2m/sec.



Knitting speed varies according to gauge and knitting condition



Stitch density Controlled by stepping motor with scope 0-99 Racking



Stppeing motor-driven racking mechanism.Max 20mm racking



Fabric takedown  Main roller controlled by torque motor , two speeds only



Needle selection  By hand .long jack needles or short jack needles or combination of both(optional)



Stop motion  Yarn break, large knot, needle break ,shock detection,wraparound check , over-torque,piece count , program error,etc



Drive system  Belt-drive by variable-frequency motor, with 0-9 levels,with limit switches  Top tension 8 sets .yarn knots detect system included



Side tension  6 each side  Yarn carries  6 carriers on 3 guide rails  Safety cover  full safety cover for noise-suppression and dust-proofing Operation lamp  Green/normal operation, Amber/abnormal.Yellow/stop Back-up power  UPS combined with ON/OFF switch power supply for resuming knitting after power failure(optional) Memory 64K Data input USB Controller  Buit-in LED mono color monitor.Edidting is possible for the next course when machine is working  Size and Weight Net dimensions:1950*770*1900mm

Net weight:460kgs



Package dimensions:2200*1020*1800mm



Gross weight:460kgs

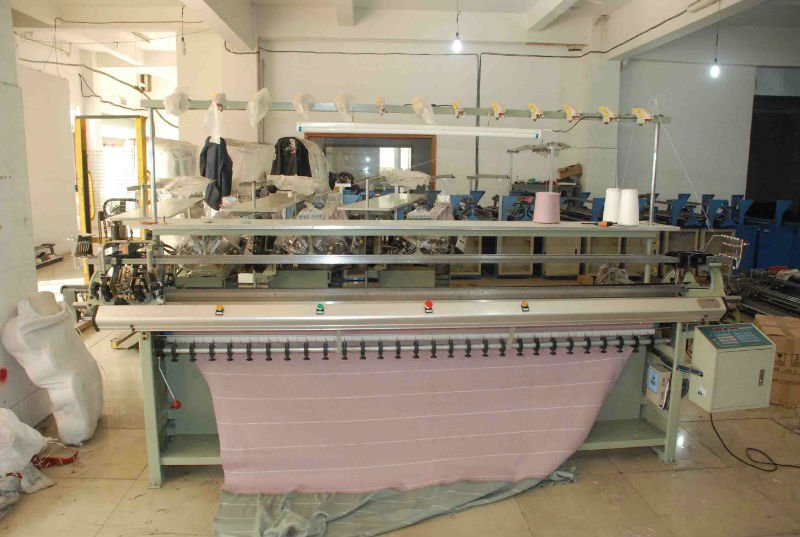

mahcine picture :





80 inch single system and single carriage collar machine
