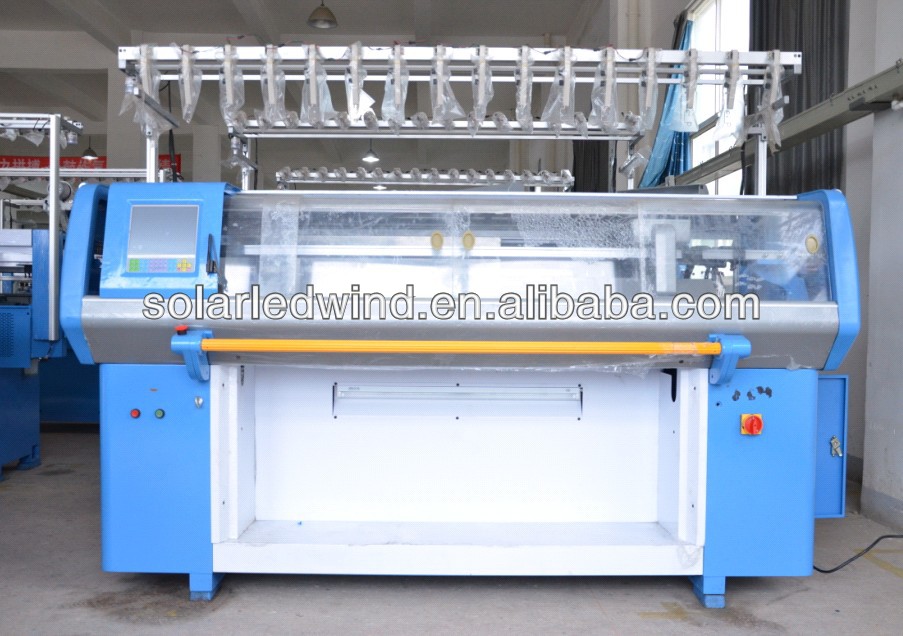

Double system computerized flat knitting machine

FOB Reference Price:Get Latest Price
1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Product Type:
Sweater
Type:
Jacquard
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
SN
Model Number:
FMZ1-52S
Knitting Style:
Flat
Knitting Method:
Double
Computerized:
Yes
SupplyAbility
SupplyAbility:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden box
Port
NINGBO
Lead Time :
20DAYS

Specifications

the machine can jacquard collar

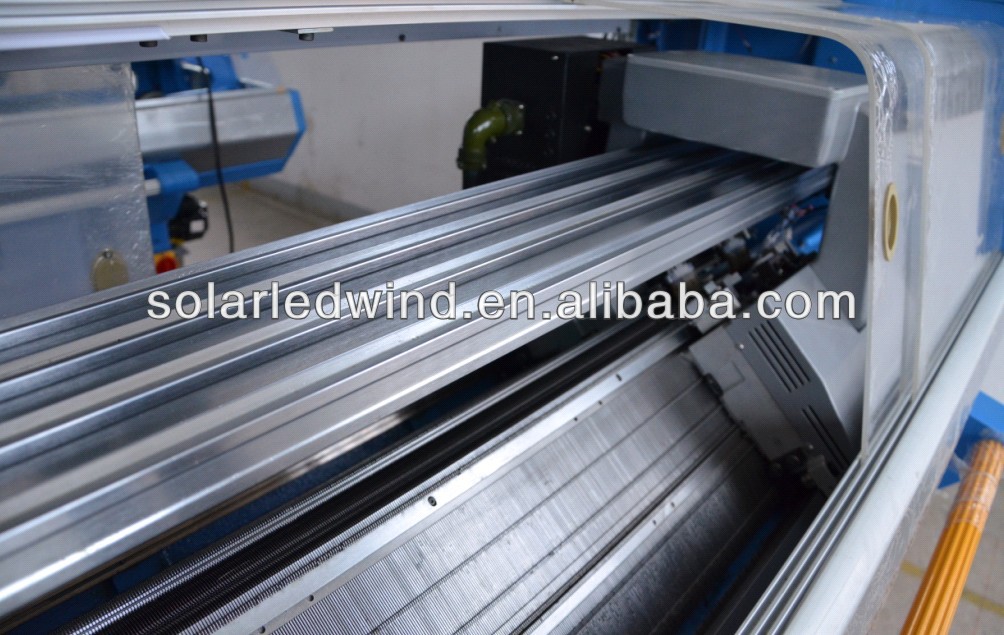

and have two needles bed , can translate the needle bed

the machine can jacquard collar
and have two needles bed , can translate the needle bed

Model  FMZ1-52S



Knitting width 40",52",60",80",100"(special size could be ordered)



Gauge 5G,6G,7G,9G,12G,14G,16G



Weaving speed  Variable frequency,6-block control ,easy adjustment(operation display), highest speed of 1.6m/s



Color system  6 colors shiftable



Automatic-controlled front-middle-back tucks , high-low stitch system



Mobile-track servo motor racking  ,3-needle space at both sides,adjustment unit of 0.5 needle (one or more free move )



Synchronised weave  it could weave 18 types, with each type could store 999 inches(external card could transfer 4 types to internal card)



Automatic package  cutting yarn ,breaking,fumu,trangle  machine,density televsion,shutle box,mobile machine,voltage instability (frequency-conversion protection)





Control system types,amount,mobile track,cloth wrapping,weaving speed,quantity



Drive structure synchronous driving belt will move to-and-from,with(size) could be easily adjusted



Density adjustment stepping motor 1-150(8-block control) requirements on power supply and



electrical machine  AC220,50HZ,drivde motor of 550W



computerized flat knitting machine
