automatic terry socks knitting machine

FOB Reference Price:Get Latest Price
1 Set/Sets (Min. Order)
Supply Ability:
100 Set/Sets per Month
Port:
Ningbo
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Plain Knitting Machine
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
SN
Model Number:
6T
Voltage:
220V/380V, 3phase, 50/60Hz
Power(W):
1KW
Weight:
330KG
Dimension(L*W*H):
165*95*85CM
Certification:
CE
Warranty:
12month
After-sales Service Provided:
Engineers available to service machinery overseas
Cylinder Diameter:
3.75/4inch
Needle Number:
108-168N
Speed:
220-280rpm
Packaging & Delivery
Packaging Details
standard wooden package
Delivery Time
30days after the deposit

Specifications

1.drumless ,fully automatic electronic control system
2.Cylinder Dia: 3.75/4inch
3.Needle Number:108-168N

Mode

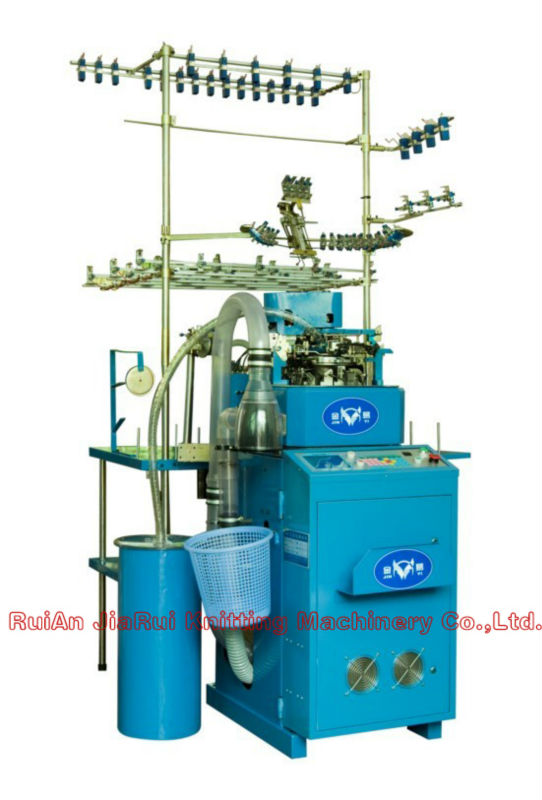

SN-6T Terry socks knitting machine

Cylinder diameter

3.75”   4”

Needles

108N to 168N

Rotational speed

220RPM to 280RPM

Drive motor power

1.0kw

Control box

0.2 kw

Electricity

220v/380V

Air pressure

0.55 to 0.6 Mpa

Blower power

0.35kw/set

Floor space

150L*95W*220Hcm

Packing

Packed with bakelite plate

165cm*95cm*85cm (1.5CBM)  GW:330KG

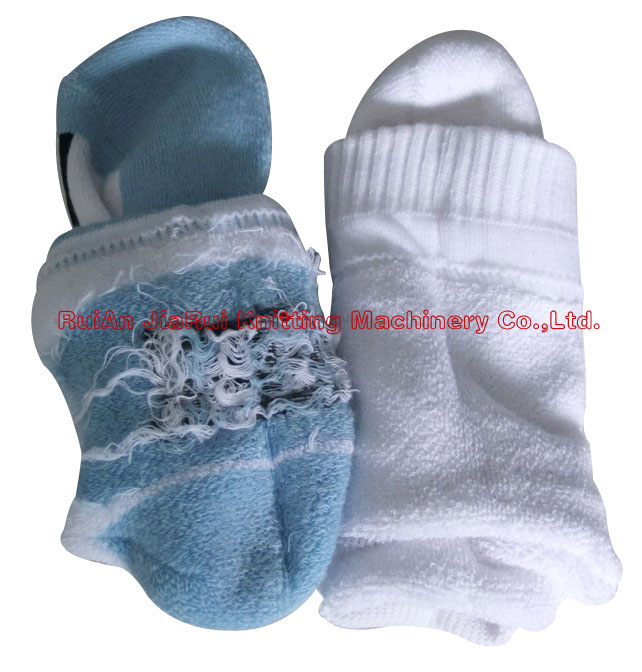

Production

for men’s sock :about 280 pairs/24 hours
for women’s sock :about 300 pairs/24 hours
for children’s sock :about 360 pairs/24 hours
for stocking :about 150 pairs/24 hours

Main features:

1.drumless ,fully automatic electronic control system .

2.use double needle method ,small tuming around extension ,high speed ,and higgh efficiency .

3.automatic oil pump system .

4.option of up to 2 main feeds+5 pattern feeds (16 colours) .

5.using USB interface for easier data reading and storage .

6.the system adopt bilingual system of chinese and english and the precision of color sensitive computer flexible control panel .large-capacity data storage system,achieve rapid the task about data exchange and automatically jacquard,manufacture sock .

7.equipped the UPS machine can keep the memory of program and the knitting action if transient electric power cut happened.when the power restage,machine can continue the knitting to reduce any loss or wastage .

8.stitch size ,speed,course length,quantity,chain steps,pattern.etc .can be controlled and altered using the control box .

9.big memory on each cpu allows for more pattern,size and program storage .

10.auto-testing,error sensors and self protection system .
