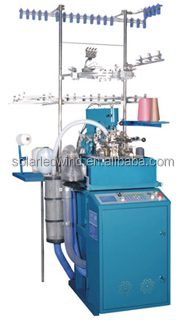

Plain and Terry Multifunctional 3D Fully Computerized Socks Machine

FOB Reference Price:Get Latest Price
2 Set/Sets (Min. Order)
Supply Ability:
100 Set/Sets per Month
Port:
Ningbo
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Plain Knitting Machine
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
SN
Model Number:
SN-B705PM
Voltage:
220V/380V
Power(W):
1.1kw
Weight:
350kgs
Dimension(L*W*H):
111*77*176cm
Certification:
CE
Warranty:
12month
After-sales Service Provided:
Engineers available to service machinery overseas
Cylinder Diameter:
3.75"
Needle Number:
72N-220N
Packaging & Delivery
Packaging Details
standard wooden package
Delivery Time
20days after the deposit

Specifications

1.Weaving 1 main color and 5 secondary colors for each line
2.Cylinder Diameter:3.75"
3.Needle Number:72N-220N

Main Feature And Function:
1,Drumless fully computerized control system. The main server is brushless servo motor.



2. Equipped the UPS to support continuous knitting function.During power off,the machine can memorize the knitting program and action, and the knitting can be continued after restoring the power.Thus minimize certain loss.



3. Equipped with an internal USB Disk drive for easy information reading and storage.


4. No lift pick,no depressor,no high level stitches,makes the production capability and function better than the traditional single or dual tucking stitches.And no dirty socks from the production with the advantage of adapting low level stitches for the sock top.


5.. It has capability of weaving 1 main color and 5 secondary colors for each line.Each of the socks can be weaved 9 main colors,2 secondary colors,12 pattern colors.


6.Elastic feeding controlled by stepping motor ,can satisfy the need of various welt size.


7. Automatic lubrication by adopting micro-computerized oil feeder.


8. LCD allows the operator to reset required data for different designs,including knitting speed,length,size,production quantity,graphics and steps.


9. 32 digits high efficiency CPU color LCD,large scale EMS memory.Allows the machine to keep hundreds of patterns,movement documents,flexible resetting of the valve working location.


10. Auto-testing, error sensors and self-protective.


11,Can be weaved plain ,rib , mesh, tuck, elastic jacquard, arcturus heel, anti-socks head, heel change the yarn,multi-level rib top,foot reinforcement,around patterned socks.



The Newly Added Functions Of This New Series Are As Follwing:
1.No lift picker, no depressor, this increases the moving speed and decrease the chance of needle breakage.
2.Knitting three-dimensional patterns with 4 cross feeds provided at any location, three-dimensional model can be designed by drawing in the knitting pattern software.
3.One-time finish the knitting of five fingers sock and dual fingers sock independently .
4.Able to use 3 feed patterns while knitting sculptured flower and bulging shape flower.
5.Dual knitting the elastic rib top, single rib top plus closing top combination. Which makes the rib top rabbi more comfotable, and outlook more beautiful.
6.low needle breakage rate. With the smart design of slope stopping needle while making triangular, and corner patterns,best minimize the chance of breaking the sock top needle,control needle,jacquard needle. This makes this model superior compared to other models in the series.



Terry Feature:
Can knitting terry,half terry,part of terry,terry jacquard.



Specifications:



Cylinder Diameter

3.75"

Needle Number

72N-220N

Maximum Speed

330

Driving ControlSever Motor
Voltage220V/380V
Main Motor1.1KW
Fan≥1.1KW(Selection)
Control Box0.8KW
Site Area150′120′240cm
Net Weight300KG
Gross Weight350KG
Package Size111′77′176cm
